NBC 205:2024 Update: Why 14″x14″ is Now the Mandatory Minimum Column Size in Nepal

It was a regular morning on the construction site. Tekedar Kaka was relaxing on his old plastic chair, a cup of tea in one hand and a cigarette in the other. Engineer Babu came running with the latest structural drawing in his hand, looking worried.

Babu: Kaka! Look at this drawing. The senior engineer said all columns must now be 14″×14″ (350mm × 350mm). Earlier we used to build with 12″×12″. Why suddenly make them bigger? It will only increase the cost and slow down the work!

Kaka: (laughing loudly) Arre Babu! Your college gold medal cannot break this gitti (aggregate) on site! Sit down first, have some tea. Let me tell you a real story from my 26 years of site experience.

Nepal sits in one of the most seismically active regions on Earth. The 2015 Gorkha earthquake reminded every homeowner, builder, and engineer why structural safety cannot be compromised.

In response, the Department of Urban Development and Building Construction (DUDBC) released the NBC 205:2024 Ready-to-Use Detailing Guideline for low-rise reinforced concrete buildings without masonry infill. This guideline replaces the old 1994 version and brings updated, practical rules for ordinary residential buildings up to three storeys.

One of the most talked-about changes? The shift to a minimum column size of 350 mm × 350 mm (14″ × 14″). Many municipalities now strictly enforce this when approving drawings that follow NBC 205:2024.

Kaka: Babu, this is not just about making columns bigger for fun. It is a serious rule to save lives.

The Real Reason Behind the 14″x14″ Minimum

Babu: Kaka, I know the code requires 40 mm clear cover. Even in 12″ columns we used to place bars.

Kaka: (smiling) Babu, the code looks nice in books, but on site it is different. Let me explain in simple words.

The change is not simply “bigger is better.” It is a direct response to two critical requirements:

1. 40 mm Clear Cover to Stirrups (mandatory as per NBC 205:2024 and NBC 105:2020).
2. Enough space for 8 longitudinal bars (often 12 mm or 16 mm, sometimes 20 mm) plus stirrups.

Why 40 mm Cover Matters in Nepal’s Earthquakes

Babu: Kaka, concrete cover protects the steel from corrosion, fire, and ensures proper bond with concrete. In seismic zones, it also allows the concrete to properly confine the steel core during strong shaking.

With 40 mm cover on both sides plus 8 mm stirrups, the internal space becomes very tight in a smaller column.

Kaka: Exactly! In a 300 mm × 300 mm (12″ × 12″) column, once you deduct 40 mm cover on both sides, stirrup diameter, and the main bars themselves, there is hardly any room left. The bars get cramped, concrete cannot flow properly during pouring, and the development length for beam bars anchored into the column becomes insufficient.

NBC 105:2020 Annex A clearly requires enough column depth for proper anchorage and development length (Ld ≈ 57Ø for Fe500 steel in M20 concrete). Many municipalities now calculate that you need at least 316 mm+ for 12 mm beam bars — that is exactly why 350 mm columns are now enforced.

Reinforcement Details from NBC 205:2024 Tables

Babu: According to the tables in NBC 205:2024, for a typical 350 mm × 350 mm column with 40 mm clear cover:

• Longitudinal bars: Usually 8 bars arranged as 4 at corners + 4 intermediate.
• Common combinations:
  • 8-16Ø
  • 4-16Ø + 4-12Ø
  • Up to 8-20Ø or even 12 bars in higher risk zones (Z=0.35–0.40, Site D).

Stirrups are 8 mm diameter closed ties placed at 75 mm / 125 mm c/c in the confinement zones (top and bottom H/4 or 450 mm, whichever is larger).

Kaka: These details only fit comfortably in 350 mm × 350 mm or larger columns. If you try to squeeze them into 12″ columns, you will violate cover, spacing, or ductility rules. That is dangerous during an earthquake.

Cost Impact – 36% More Concrete, But Non-Negotiable for Safety

Kaka: Babu, now let’s talk about money. You are right that cost increases.

Let’s do the math (per metre height of column):

• Old 12″ × 12″ (305 mm × 305 mm) → Cross-sectional area ≈ 0.093 m²
• New 14″ × 14″ (356 mm × 356 mm) → Area ≈ 0.127 m²
• Increase: 36% more concrete

For a typical 3-storey house with 12 columns × 3 m height = 36 m total column length, you will use roughly 1.2–1.5 m³ extra concrete. At current Kathmandu rates (M20 ready-mix ≈ NPR 9,000–10,500 per m³), that means an extra NPR 11,000–16,000 for columns only.

Kaka: Yes, material cost rises. But compare that small extra amount with the cost of retrofitting after an earthquake — or worse, losing your home and loved ones. Structural integrity during a major quake is non-negotiable. The extra concrete also gives better fire resistance and long-term durability.

Material Comparison Table (Approximate for One 3 m Column)

Column Size	Concrete Volume (m³)	Approx. Extra Cost (NPR)	Rebar Weight (kg)
12″×12″	0.279	Base	45–55
14″×14″ (350mm)	0.367	+1,000–1,400	70–95

---

Zone-Wise Column Requirements in NBC 205:2024

Babu: Kaka, reinforcement also changes according to seismic zone and soil type.

• Site C, Z=0.25 (low seismic areas): 4-16Ø + 4-12Ø in 350 mm columns.
• Site D, Z=0.35–0.40 (Kathmandu Valley and high-risk areas): 8-20Ø or 4-20Ø + 4-16Ø. Sometimes corner and staircase columns need to be upgraded to 400 mm × 400 mm.

All columns must use Fe500 TMT steel and M20 concrete. Bar splicing is limited to 50%, and minimum lap length is 57Ø.

Kaka: So Babu, don’t argue with the zone. Follow what the code says for your area.

This is Episode 5 of our Engineer Babu & Thekedar Kaka Series. Read Part 2 – 12 Common House Construction Mistakes People Make When Building a House in Nepal. – Nirman Sutra

Go to pro.nirmansutra.com For Complete BOQ

Use Our Free Column Concrete & Rebar Calculator

Babu: Kaka, stop guessing quantities!

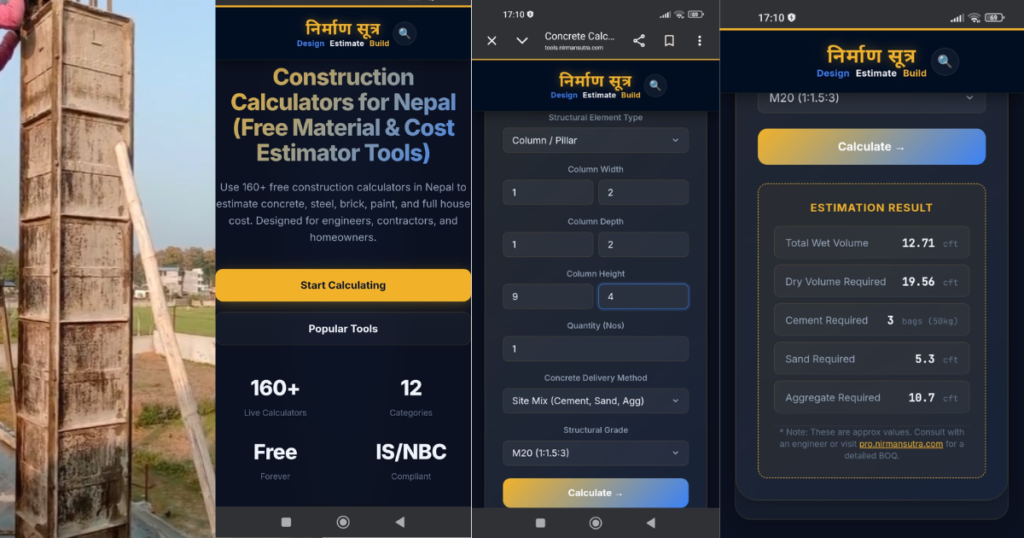

Our Column Concrete & Rebar Calculator at tools.nirmansutra.com is pre-loaded with NBC 205:2024 defaults:

• Column size: 350 mm × 350 mm
• Height, number of columns, and storey-wise variation
• Automatic calculation of concrete volume, cement bags, sand, aggregate, and Fe500 rebar weight (including stirrups)

Try it now → Column Calculator

Thousands of Nepali contractors use it every day.

Common Mistakes Builders Still Make (And How to Avoid Them)

Kaka: Babu, I see these mistakes every day on sites:

1. Still using 300 mm columns “because the old drawing had it.”
2. Reducing cover to 25 mm to squeeze in more bars.
3. Ignoring zone-specific rebar (using only 4 bars in high-risk zones).
4. Making poor stirrup hooks (must be 135° with 65 mm extension).

Municipalities are getting stricter now. Non-compliant drawings are being rejected in many wards.

---

FAQ

Call to Action

Kaka: So Babu, tell me – what column size is mentioned in your house drawing? Have you faced any problem with the new rule?

Leave your comment below and share your experience.

Start today: → Visit tools.nirmansutra.com and calculate your column quantities. → Complete BOQ at pro.nirmansutra.com.

One house is built only once. Don’t take big risks to save small money.

Build Safe. Build Smart with NBC 205:2024
