Exact Footing Concrete Calculation Nepal: NBC 205:2024 Standards

When building a house in Nepal, the foundation is literally where your money is buried. Most homeowners in Kathmandu, Pokhara, or the Terai belt rely solely on “Contractor Kaka’s” thumb rules. The result? You either over-order concrete by 20%, wasting thousands of rupees, or you fall short, leading to “cold joints” that weaken your home’s structural integrity.

In 2026, with the updated NBC 205:2024 (Nepal National Building Code) standards and fluctuating cement prices, precision isn’t just about engineering-it’s about your bank balance. Whether you are building a 2.5-storey house in Lalitpur or a bungalow in Chitwan, this guide will show you exactly how to calculate footing concrete like a pro.

Why Accurate Footing Concrete Calculation Nepal Matters

Nepal’s diverse geography means soil bearing capacity (SBC) varies wildly. A footing in the soft “black cotton” soil of Kalanki requires different dimensions than one on the rocky slopes of Kaski.

• Cost Control: Concrete is one of the most expensive components of your “Grey Structure.” Overestimating by even 2 cubic meters can waste over Rs. 30,000 in cement and aggregates.
• Structural Safety: Under-filled footings fail to distribute loads properly, leading to cracks in walls later.
• Earthquake Resilience: Following NBC 205:2024 ensures your foundation can withstand seismic shifts common in the Himalayas.

NBC 205:2024 Footing Size Recommendations

For a standard 2-storey residential building in Nepal, the code provides specific guidelines based on soil type.

Column Position	Recommended Footing Size (m)	Depth/Thickness (mm)
Corner Column	1.5m x 1.5m	350mm
Edge/Face Column	1.8m x 1.8m	400mm
Interior Column	1.9m x 1.9m	450mm

Note: Always use M20 Grade Concrete (1:1.5:3 ratio-1 part Cement, 1.5 parts Sand, 3 parts Aggregate) for footings.

The Math – How to Calculate Volume

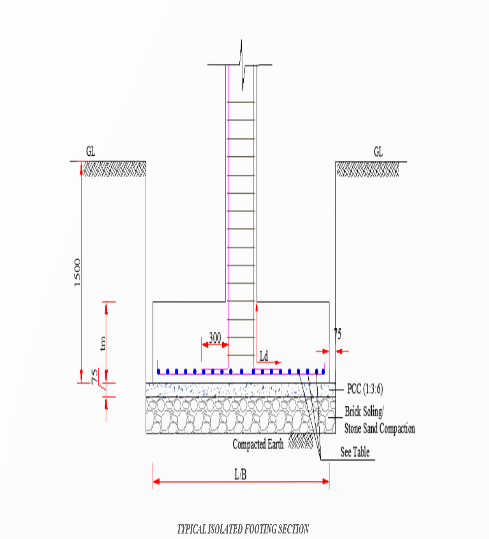

1. Isolated Pad Footing (Square/Rectangular)

The simplest form.

Volume = Length x WidthxThickness

2. Trapezoidal Footing (Sloped) – The “Nepal Standard”

Most Nepalese houses use sloped footings to save concrete while maintaining strength.

The formula for the volume (V) of a trapezoidal footing is:

Here’s the exact formula visualized:

$V = \frac{H}{3}\left(A_1 + A_2 + \sqrt{A_1 A_2}\right)$V=3H​(A1​+A2​+A1​A2​​)

What each term means

• A1A_1A1​ → Bottom area (larger base, e.g., footing bottom)
• A2A_2A2​ → Top area (smaller, where column/pedestal starts)
• HHH → Vertical height (NOT slant height)

Real Example – A 2-Storey House in Bhaktapur

Let’s look at a real-world scenario for a 4-column section of a house.

• Footing Base: 1.5m x 1.5m (A1A = 2.25 square meter)
• Top Base: 0.4m x 0.4m (A2A = 0.16 square meter)
• Height: 0.4m

Calculation:

Applying the formula, one footing requires approximately 0.58 cubic meters of concrete. For 12 footings, you need roughly 7.2 cubic meters.

Material Breakdown for M20 (using 1.54 dry volume factor):

• Cement: ~58 bags
• Sand: ~120 cubic feet (cft)
• Aggregate: ~240 cubic feet (cft)

Don’t worry we have very simple tools for calculation for footing you can just visit FREE Nirman Sutra Footing Calculator

Cost-Saving Tips for 2026

1. Don’t ignore PCC: Always pour a 1:3:6 Lean Concrete (PCC) layer (3-4 inches) before the footing to prevent water absorption from the soil.
2. Order in Bulk: In 2026, buying 100+ bags of OPC cement for your foundation usually triggers a dealer discount in the Kathmandu valley.
3. Use a Digital Calculator: Avoid manual errors. Use the NirmanSutra Footing Calculator to get instant results in local units (Bags, Tipper, Trolley).

FAQ: बारम्बार सोधिने प्रश्नहरू

Don’t build your dream home on guesswork. Use science and engineering to save money and ensure safety.
